Lighting » Light FX » LED Lighting » Strobes » Strike 4 Blinder Strobe

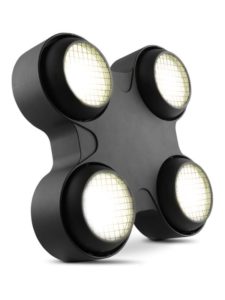

TRIKE 4 is an electrifying audience blinder and strobe with four high-power 100 W COB LEDs housed in independently focusable pods. It’s the go-to-choice for high energy automated strobe effects and its smooth 16-bit dimming curve facilitates incandescent-style fades. Its adjustable PWM is ideal in film and studio applications. STRIKE 4 comes standard with basic and advanced control personalities for flexibility in programming, and an easy-to-read OLED display for quick onboard adjustments.

AT A GLANCE
16-bit dimming control for smooth, perfect fades
Individual pan of each head to allow for directional adjustment of light output
Simple and complex DMX channel profiles for programming flexibility
Easy to use OLED display
Automated strobing programs for easy programming
Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera

SPECIFICATIONS

OPTICAL
Light Source: 4 LEDs (WW) 100 W, (2.3 A ), 3096 K, 50,000 hours life expectancy
Color Temperature (at full): 3096 K
Beam Angle: 49°Field Angle: 79°Illuminance (total): 999 lux @ 5 mIl
luminance (per cell): 242 lux @ 5 mPixels: 2 x 2 Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
Pan: ± 24° manual adjustment per podDimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz Standalone Color Mixing: Yes
Dim Modes: 4Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 14.2 x 6.4 x14.2 in (362 x 163 x 362 mm)Weight: 19 lb (8.7 kg)Exterior Color: Black
Housing Material: Aluminum die-cast

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik power
CONPower Input: Neutrik power CON Power Output: Neutrik powerCON Data Connectors: 5-pin XLR Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX DMX Channels: 1, 3, 4 or 9

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V Power and Current: 301 W, 2.49 A @ 120 V, 60 Hz Power and Current: 287 W, 1.43 A @ 208 V, 60 Hz Power and Current: 286 W, 1.29 A @ 230 V, 50 Hz

Day Rate
£45
Week Rate
£135
